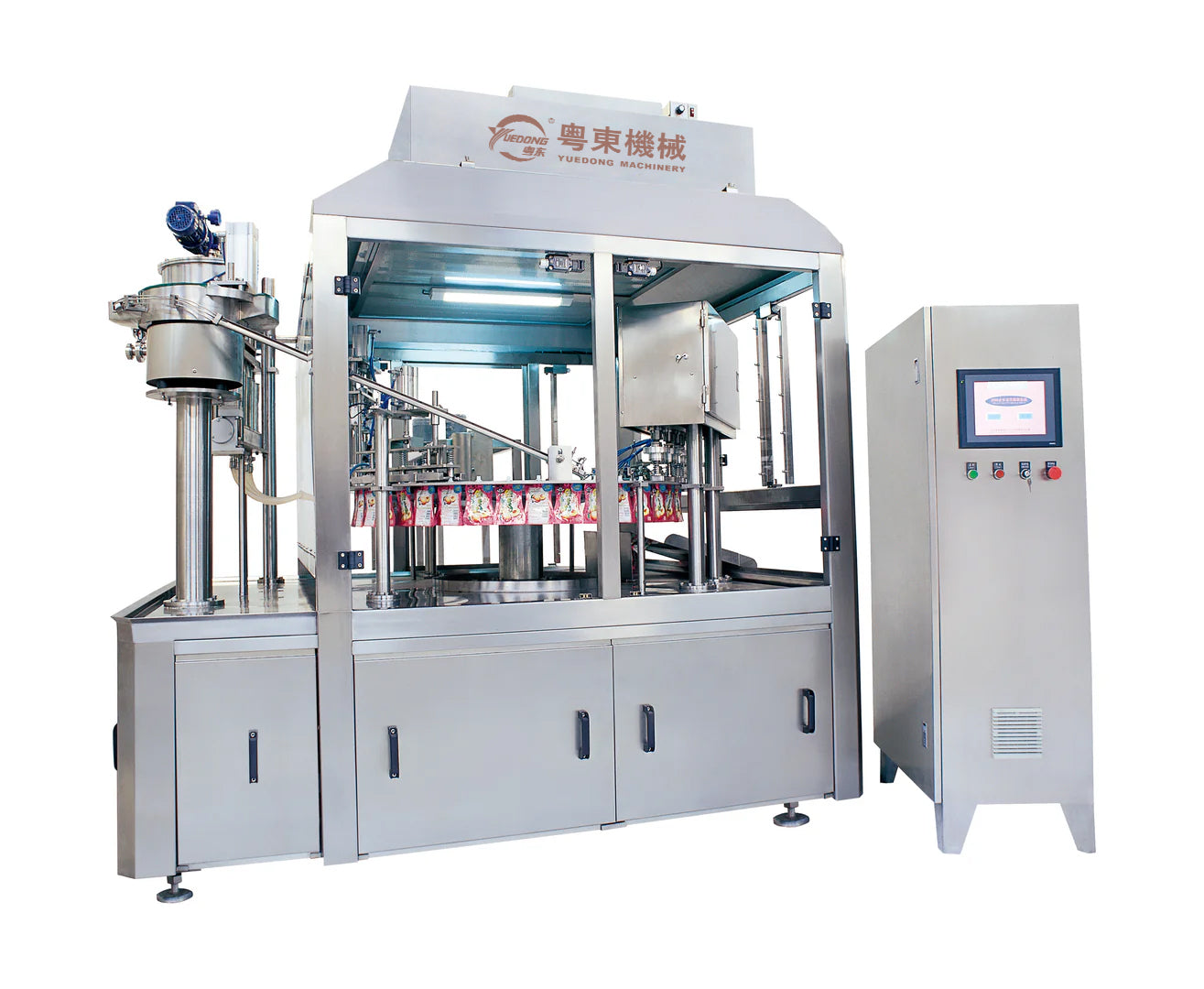

ZZCX-ZD Series Full-auto Stand-up Pouch Filling and Capping Machine
×
![]()
Aluminum box vacuum inflatable sealing machine
●This model adopts a turntable step-by-step transmission, automatically feeding bags → bag entry detection → filling → blowing after filling (to prevent dripping of the filling head and overflow of the bag mouth) → cleaning of the bag mouth → cap management → upper cover → upper cover It consists of inspection → capping → bag unloading and other parts. The machine has a reasonable structure, adopts PLC and touch screen control, has advanced performance and is a food packaging machinery and equipment with a high degree of automation. This machine is suitable for bag spouts with single and double card slots.

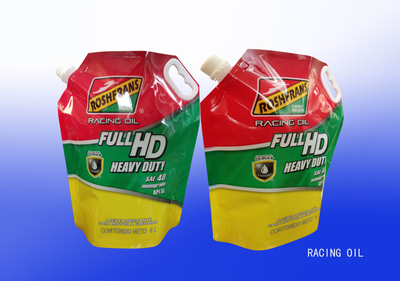

●This machine is suitable for the production of bagged suckable jelly, soy milk products, dairy products, edible oil, purified water, fruit drinks, ice cream, condiments, washing chemicals and other liquid products.
CASE SHOW
ZZCX-ZD Series Full-auto Stand-up Pouch Filling and Capping Machine
Technical Paramete
| Modle | Fill Volume | Output | Modle | Fill Volume | Output |
| ZCX-1ZD | 100-500 (ml) | 1000-1500 (cups/hour) | ZCX-1ZD | 500-1000 (ml) | 600-1000 (cups/hour) |
| ZCX-1ZD | 1000-1500 (ml) | 400-800 (cups/hour) | ZCX-2ZD | 100-500 (ml) | 2000-3000 (cups/hour) |
| ZCX-2ZD | 500-1000 (g/grams) | 1200-1600 (cups/hour) | ZCX-2ZD | 1000-1500 (ml) | 800-1600(cups/hour) |
| ZCX-3ZD | 100-150 (ml) | 2000-3000 (cups/hour) | ZCX-3ZD | 500-1000 (g/grams) | 1200-1600(cups/hour) |
| ZCX-4ZD | 100-500(ml) | 3200-4800 (cups/hour) | ZCX-4ZD | 500-1000 (g/grams) | 3200-4200 (cups/hour) |
| ZCX-5ZD | 100-500(ml) | 4200-6000 (cups/hour) | ZCX-5ZD | 500-1000 (g/grams) | 4000-5000 (cups/hour) |
| ZCX-6ZD | 100-150(ml) | 5000-7200 (cups/hour) | ZCX-8ZD | 100-150(ml) | 8000-11000 (cups/hour) |
